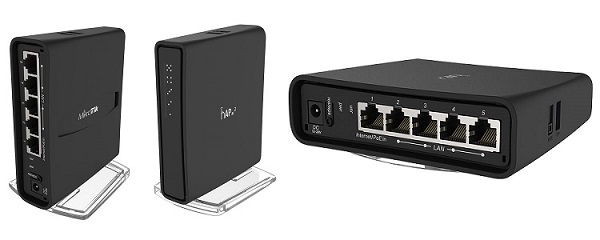

hAP ac²
The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem.
Specifications
| Product Name | hAP ac² |
| Product code | RBD52G-5HacD2HnD-TC |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | 34 x 119 x 98mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 50°C |
| IPsec hardware acceleration | Yes |
| Price | Please call us for Discount Price |
| Warranty | 12 Months Limited Warranty |
Interfaces
| 10/100/1000 Ethernet ports | 5 |
Wireless Capabilities
| AC speed | AC1200 |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 5 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
Powering
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-30 V |
| Max power consumption | 21 W |
| Max power consumption without attachments | 16 W |
Peripherals
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Mode button | Yes |
Included parts
