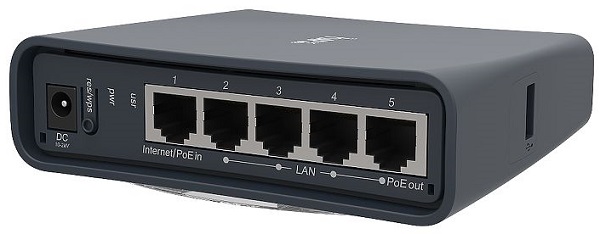

hAP ac lite TC
The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.
Specifications
| Product Name | hAP ac lite TC |
| Product code | RB952Ui-5ac2nD-TC |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 34 x 119 x 98mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
| IPsec hardware acceleration | No |
| Price | Please call us for Discount Price |
| Warranty | 12 Months Limited Warranty |
Interfaces
| 10/100 Ethernet ports | 5 |
Wireless Capabilities
| AC speed | AC750 |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz number of chains | 1 |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wireless chip model | IPQ-4018 |
| Wi-Fi generation | Wi-Fi 5 |
Powering
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-30 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 8 W |
Peripherals
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Certification & Approvals
| Certification | CE, FCC, IC, EAC, ROHS |
Included parts
