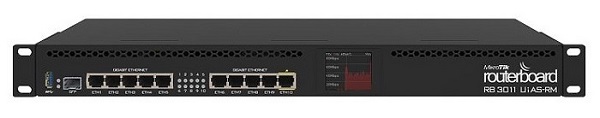

RB3011UiAS-RM
Specifications
| Product code | RB3011UiAS-RM |
| Architecture | ARM 32bit |
| CPU | IPQ-8064 |
| CPU core count | 2 |
| CPU nominal frequency | 1.4 GHz |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| License level | 5 |
| Operating System | RouterOS |
| Dimensions | 443x92x44mm |
| Tested ambient temperature | -20°C to 70°C |
| IPsec hardware acceleration | Yes |
| Price | Please call us for Discount Price |
| Warranty | 12 Months Limited Warranty |
Interfaces
| 10/100/1000 Ethernet ports | 10 |
| SFP port | 1 |
Suggested Bandwidth
| Basic Configuration (With Filter, NAT, Mangle, Queue) | up to 100 Mbps |
| Routing Only (Without NAT, Mangle, Queue) | up to 300 Mbps |
Powering
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| PoE out | Passive PoE |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 10 W |
Peripherals
| Number of USB ports | 1 |
| Serial port | RJ45 |
Other
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
